Digital Drives

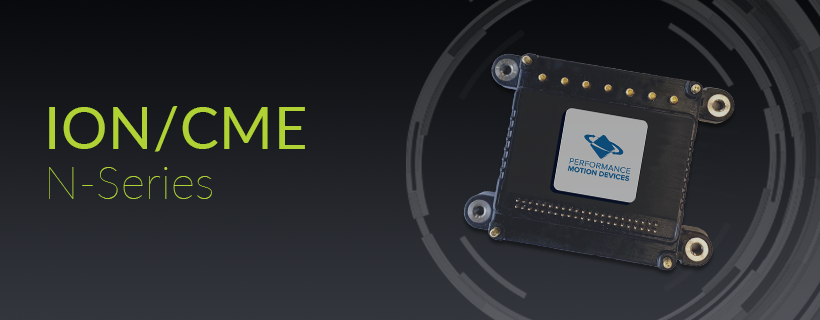

N-Series Digital Drive in PCB-Mountable Format with Downloadable User Code, Internal Profile Generation, and Position Control

ION/CME N-Series Digital Drives are compact, PCB-mountable modules that provide high-performance motion control, network connectivity, and power amplification for Brushless DC, DC Brush, and step motors. Fully programmable, these powerful members of the ION® 500 Digital Drive family allow designers to download and run application programs directly on the ION unit itself. Three power output levels are available - 75, 350, and 1,000 watts. N-Series IONs perform profile generation, PID servo compensation, direct encoder input, stall detection, field-oriented control, and many other motion control functions. Host interface options include Ethernet, CAN FD, RS232, RS485, and SPI These miniature devices are ideal for creating embedded control solutions for medical, mobile, scientific, semiconductor, and a host of other automation applications.

At the core of every N-Series ION is a Magellan IC that speaks PMD's common language C-Motion, thereby ensuring compatibility with the entire range of PMD motion control products.

ION 500 and 3000 Standalone Digital Drive With Internal Profile Generation and Position Control

ION® 500 & ION 3000 Digital Drives are compact, fully enclosed cable-connected modules that provide high-performance motion control, network connectivity and power amplification for Brushless DC, DC Brush, and step motors. Two power output levels are available, the ION 500 is rated at 500 Watts and the ION 3000 is rated at 3,000 Watts. IONs perform profile generation, PID servo compensation, direct encoder input, stall detection, field-oriented control, digital torque control, and many other motion control functions. Host interface options include Ethernet, CANbus, RS232 and RS485. These powerful devices are ideal for medical, scientific, semiconductor, robotics, industrial and many other automation applications.

At the core of every ION is a Magellan IC which speaks PMD's common language C-Motion, thereby ensuring compatibility with the entire range of PMD motion control products.

"Performance Motion Devices' motion knowledge enabled us to drive our products through the successful development and testing phases, ultimately delivering optimum system performance."

~ Robert, Project Engineer, System Electronics, Modena, Italy

ION/CME 500 Digital Drive With Downloadable User Code, Internal Profile Generation, and Position Control

A programmable version of the standard ION® 500 Digital Drive, the ION/CME 500 allows designers to download and run motion programs directly onto the ION 500 Digital Drive itself. These digital drives are compact, fully enclosed modules that provide high-performance motion control, network connectivity, and power amplification. The power output is rated at 500 Watts. ION/CMEs perform profile generation, PID servo compensation, direct encoder input, stall detection, field-oriented control, digital torque control, and many other motion control functions. Host interface options include Ethernet, CANbus, RS232, and RS485. These flexible and powerful devices are ideal for medical, scientific, semiconductor, robotics, industrial and many other automation applications.

At the core of every ION/CME is a Magellan IC which speaks PMD's common language C-Motion, thereby ensuring compatibility with the entire range of PMD motion control products.
