Magellan® Family

The Magellan® Family of Motion Control ICs provides high-performance chip-based motion control for multiple motor types. Available in 1, 2, 3, and 4-axis versions, these flexible and programmable devices control Brushless DC, step, and DC Brush motors. Magellan ICs are designed for demanding applications such as medical automation, general automation, and scientific instrumentation. They can be used directly in your own control board designs, or via PMD's module, drive, and board products, where they form the motion control core of each of these devices.

Magellan Family of Motion Control ICs offered

Magellan® MC58113
Third-generation positioning motion controller with current control for Brushless DC, DC Brush, and step motors in a compact single-axis IC package.

Magellan® MC58000
Third-generation positioning motion controller for Brushless DC, DC Brush, and step motors in a compact one- to four-axis IC chipset package.

Magellan® MC55000
Third-generation positioning motion controller for step motors in a compact one- to four-axis IC chipset package.

Magellan MC58113 Motion Control IC
Uploads%2fcd4f31aa f383 4a68 99b2 c678f5544a2c%2fmc58113
Uploads%2fc14d8749 90f7 4a74 8f76 34618bdce824%2fmc58113+othumb

MC58113 Single-axis Positioning Motion Control IC with Current Control

Our Magellan® MC58113 Motion Control IC provides high-performance motion control with an integrated digital current loop for medical, scientific, robotic, and automation applications. Available as a single, one-axis IC, the MC58113 IC is a programmable device that provides positioning, velocity, and torque control for Brushless DC, step, and DC Brush motors. This versatile and powerful IC provides profile generation, servo-loop closure, commutation, and pulse and direction output along with direct quadrature encoder input. Advanced digital current control and amplifier switch signal generation technology provides smooth, ultra-quiet operation – particularly useful for eliminating the noise associated with step motors.

Learn More

Get a head start on your development work, with a Magellan ICs Developer's Kit

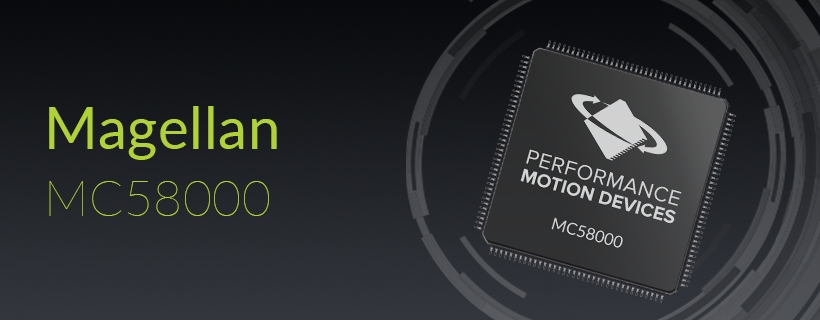

Magellan MC58000 Motion Control ICs
Uploads%2fcd4f31aa f383 4a68 99b2 c678f5544a2c%2fmc58000
Uploads%2fc14d8749 90f7 4a74 8f76 34618bdce824%2fmc58000+%28mc58420%29+othumb

Magellan MC58000 Multi-axis Positioning Motion Control IC

The Magellan® MC58000 Motion Control IC provides high-performance motion control for medical, scientific, robotic, and automation applications. Available in 1, 2, 3, and 4-axis versions, the MC58000 IC is a programmable device that provides position and velocity control for Brushless DC, step, and DC Brush motors. This flexible and powerful chipset provides profile generation, servo-loop closure, commutation, and pulse and direction output along with direct quadrature encoder input. Motor command output is provided for PMD's Atlas Amplifier modules, on-card PWM (Pulse Width Modulation) IC amplifiers, or +/- 10V input amplifiers.

Learn More

Integrate motion control fast, with a Magellan ICs Developer's Kit

Magellan MC55000 Motion Control IC
Uploads%2fcd4f31aa f383 4a68 99b2 c678f5544a2c%2fmc55000
Uploads%2fc14d8749 90f7 4a74 8f76 34618bdce824%2fmc55000+%28mc55420%29+othumb

Magellan MC55000 Multi-axis Pulse and Direction Motion Control IC

The Magellan® MC55000 Motion Control IC provides high-performance motion control for medical, scientific, robotic, and automation applications. Available in 1, 2, 3, and 4-axis versions, this flexible, programmable device provides profile generation and pulse and direction output for step motor-based systems.

Learn More

Develop your solution fast, with a Magellan ICs Developer's Kit

MC73110 Velocity and Torque Control IC
Uploads%2fcd4f31aa f383 4a68 99b2 c678f5544a2c%2fmc73110
Uploads%2fc14d8749 90f7 4a74 8f76 34618bdce824%2fmc73110+othumb

The MC73110 Velocity and Torque Control IC provides high-performance digital current loop, velocity loop, and commutation for Brushless DC motors. This intelligent single-axis drive controller operates in internal velocity profile mode, velocity mode with an external velocity command signal, or torque mode with an external torque signal in combination with the Magellan® MC58000 series ICs.

Learn More

Jumpstart your development work, with a MC73110 Velocity and Torque Control ICs Developer's Kit

Navigator
Uploads%2f0c82d115 c8ad 495e afc2 1e12f82535b7%2fnavigator ic set thumb

The Navigator® Family of Motion Control ICs delivers highly integrated, motion control technology for controlling multiple motor types including DC Brush, Brushless DC, step, and microstepping. Navigator motion control ICs are available in 1, 2, and 4-axis configurations, and are ideal for semiconductor handling, industrial equipment, and security. Applications include DC motor speed control and high-performance motion control.

While our Navigator®, Pilot®, and First Generation ICs are no longer available for new product development, we continue to supply and service these products for customers using them in existing equipment. For technical information about Navigator or Pilot ICs, please see our online resources.

Pilot
Uploads%2f0c82d115 c8ad 495e afc2 1e12f82535b7%2fic pilot thumb

The Pilot® Family of Motion Control ICs provides single-axis motion control for Brushed servo, Brushless servo, step, and microstepping motors from a single IC. Pilot motion control ICs are well suited to applications in medical automation, robotics, and semiconductor handling.

While our Navigator®, Pilot®, and First Generation ICs are no longer available for new product development, we continue to supply and service these products for customers using them in existing equipment. For technical information about Navigator or Pilot ICs, please see our online resources.

First Generation Motion Control ICs
Uploads%2f0c82d115 c8ad 495e afc2 1e12f82535b7%2fic gen1 thumb

Dedicated, IC-based device that provides programmable motion control. Depending on the type of motor controlled, they provide servo loop closure, on-board commutation for Brushless motors, and high-speed pulse and direction outputs.

While our Navigator®, Pilot®, and First Generation ICs are no longer available for new product development, we continue to supply and service these products for customers using them in existing equipment. For technical information about Navigator or Pilot ICs, please see our online resources.
