Atlas PCB-Mountable Amplifiers

atlas-horizontal-175x175
Request A Quote Submit Technical Question Buy Now

Atlas® Amplifiers are compact single-axis amplifiers that provide high-performance torque control for Brushless DC, DC Brush, and Step motors. They are packaged in a compact, solderable module and are ideal for use in positioning motion control, velocity control, and precision force control applications. Atlas amplifiers come in both a vertical and horizontal mounting configuration and are available in three power ranges: 75W, 250W, and 500W. They are ideally suited for applications such as medical equipment, laboratory automation, scientific instruments, general-purpose motion control, force feedback, and actuator control.

  • Ultra-efficient all digital solderable power amplifier
  • Controls Brushless DC, step, and DC Brush motors
  • Available in 75W, 250W, and 500W power levels
  • Operating supply voltage range of 12V to 56V
  • FOC (Field Oriented Control)
  • Overcurrent, overvoltage, undervoltage, and overtemperature protection
  • SPI (Serial Peripheral Interface) torque command input
  • Two different package sizes available
  • Works with Magellan® ICs, FPGAs or microprocessor-based controllers
  • Comes in horizontal and vertical mount configurations

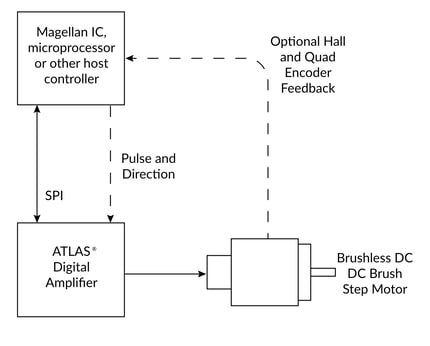

atlas-connection-diagram

Internal Block Diagram

 Internal Block Diagram

Atlas Digital Amplifier Internal Block Diagram



Part Numbers

 Part Numbers

Scroll for more →
Part Number Power & Voltage Package Motor Type

Step Motor
MD241048/02VB 75W, 12-48V Ultra Compact, Vertical Step Motor
MD241048/02HB 75W, 12-48V Ultra Compact, Horizontal Step Motor
MD241048/05VB 250W, 12-48V Ultra Compact, Vertical Step Motor
MD241048/05HB 250W, 12-48V Ultra Compact, Horizontal Step Motor
MD141056/25VB 500+W, 12-56V Compact, Vertical Step Motor
MD141056/25HB 500+W, 12-56V Compact, Horizontal Step Motor

Brushless DC
MD231048/02VB 75W, 12-48V Ultra Compact, Vertical Brushless DC
MD231048/02HB 75W, 12-48V Ultra Compact, Horizontal Brushless DC
MD231048/05VB 250W, 12-48V Ultra Compact, Vertical Brushless DC
MD231048/05HB 250W, 12-48V Ultra Compact, Horizontal Brushless DC
MD131056/25VB 500+W, 12-56V Compact, Vertical Brushless DC
MD131056/25HB 500+W, 12-56V Compact, Horizontal Brushless DC

DC Brush
MD211048/02VB 75W, 12-48V Ultra Compact, Vertical DC Brush
MD211048/02HB 75W, 12-48V Ultra Compact, Horizontal DC Brush
MD211048/05VB 250W, 12-48V Ultra Compact, Vertical DC Brush
MD211048/05HB 250W, 12-48V Ultra Compact, Horizontal DC Brush
MD111056/25VB 500+W, 12-56V Compact, Vertical DC Brush
MD111056/25HB 500+W, 12-56V Compact, Horizontal DC Brush

Multi Motor
MD281048/02VB 75W, 12-48V Ultra Compact, Vertical Multi Motor
MD281048/02HB 75W, 12-48V Ultra Compact, Horizontal Multi Motor
MD281048/05VB 250W, 12-48V Ultra Compact, Vertical Multi Motor
MD281048/05HB 250W, 12-48V Ultra Compact, Horizontal Multi Motor
MD181056/25VB 500+W, 12-56V Compact, Vertical Multi Motor
MD181056/25HB 500+W, 12-56V Compact, Horizontal Multi Motor

Specifications

Specifications

Scroll for more →
Parameter Value
Supported motor types Brushless DC, step motor, DC Brush
PWM frequency 20, 40, 80, 120 kHz
Current Loop rate 20 kHz
Microstepping resolution 256 microsteps per full step
User Programmability Non-volatile RAM user configuration storage
Trace Memory 2 KB
I/Os FaultOut, Enable
Safety Short Circuit, OverCurrent, I2t Current Foldback, SPI Watchdog, Overvoltage, Undervoltage
Operating Temperature 0° - 40° C
Compliance RoHs, CE LVD:EN60204-1, EMC-D: EN61000-6-1, EN61000-6-3, EN55011
UL Designed to UL508C, UL840, and EN60204-1

Mechanical Dimensions

Scroll for more →
Model Length Width (W) Height
Ultra Compact Vertical 1.054 in
(26.8 mm)		 1.051 in
(26.7 mm)		 0.526 in
(13.4 mm)
Ultra Compact Horizontal 1.054 in
(26.8 mm)		 1.051 in
(26.7 mm)		 0.526 in
(13.4 mm)
Compact Vertical 1.520 in
(38.6 mm)		 1.517 in
(38.5 mm)		 0.600 in
(15.2 mm)
Compact Horizontal 1.520 in
(38.6 mm)		 1.517 in
(38.5 mm)		 0.600 in
(15.2 mm)
Digital Amplifier Mechanical Dimensions



Ratings & Compliance

Ratings & Compliance

Scroll for more →
Model Voltage Input Peak Current Continuous Current Package
Low Power, Brushless DC 12-48V 3.8 Amps 1.5 Arms Ultra Compact
Low Power, step motor 12-48V 3.8 Amps 1.5 Arms Ultra Compact
Low Power, DC Brush 12-48V 3.8 Amps 1.5 ADC Ultra Compact
Medium Power, Brushless DC 12-48V 12.5 Amps 5.0 Arms Ultra Compact
Medium Power, step motor 12-48V 12.5 Amps 4.5 Arms Ultra Compact
Medium Power, DC Brush 12-48V 12.5 Amps 7.0 ADC Ultra Compact
High Power, Brushless DC 12-56V 25.0 Amps 10.0 Arms Compact
High Power, step motor 12-56V 25.0 Amps 9.0 Arms Compact
High Power, DC Brush 12-56V 25.0 Amps 14.0 ADC Compact



Scroll for more →
Specification Standard
CE LVD: EN60204-1
EMC-D: EN61000-6-1, EN61000-6-3, EN55011
Electrical safety Designed to UL508C, UL840 and EN60204-1
Hazardous materials RoHS compliant
Flammability UL94-HB
Enclosure IP20

Developer Tools

Developer Kit

PMD Developer Kits make set-up, tuning, optimizing, and building your motion control application fast and easy.

Developer Kit includes:

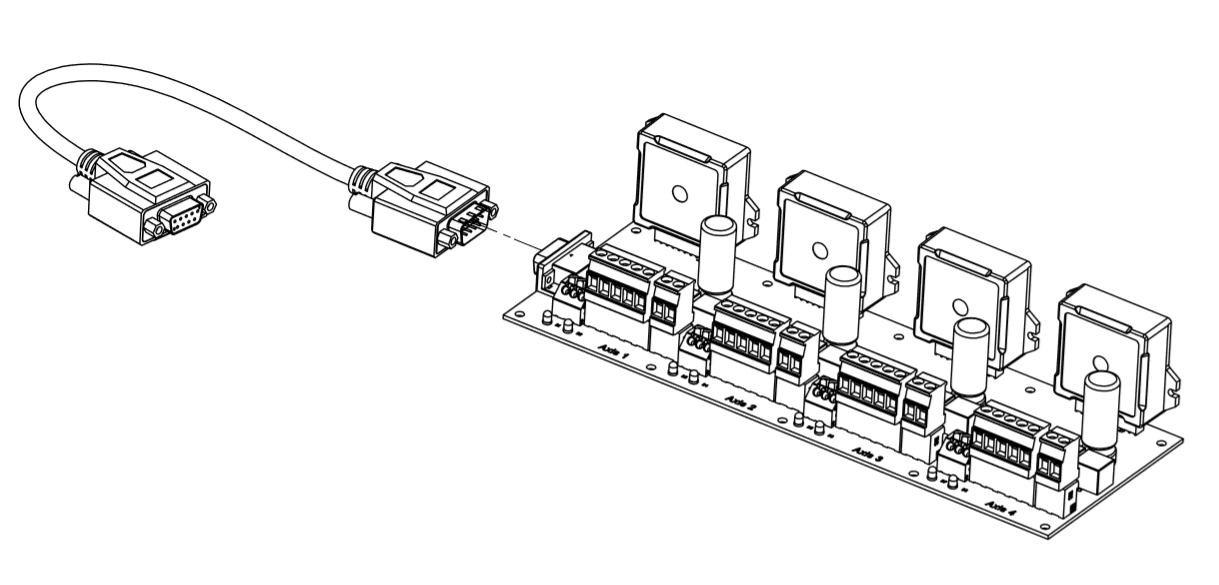

atlas-connecting-to-dk-board



Atlas-developer-kit-datasheet-image



Developer Kit Part Numbers

Scroll for more →
Developer Kit Part Number # of Axis Atlas Type Supported*
MDK1LI0000V 1 Vertical
MDK1LI0000H 1 Horizontal
MDK4LI0000V 4 Vertical
MDK4LI0000H 4 Horizontal



*Atlas amplifier not included with developer kit. Atlas unit must be ordered separately.

Documentation



Documentation

Datasheet(s)

PDF-icon-green-01Atlas Digital Amplifier Datasheet

User Guides

PDF-icon-green-01Atlas Digital Amplifier User Manual v2.2
PDF-icon-green-01Atlas Digital Amplifier Complete Technical Reference v2.2


Design Resources

Software Downloads

software-icon-GREEN-01Pro-Motion
