MC58000/MC55000 Multi-Axis Motion Control ICs

MC58000-MC50000IO-S-no-shadow-optimized-datasheet
Request A Quote Submit Technical Question Buy Now

Magellan® MC58000/MC55000 Multi-Axis Motion Control ICs provide high performance motion control for medical, scientific, robotics, and automation applications. Available in 1, 2, 3, and 4-axis versions, Magellans provide position and velocity control for Brushless DC, step, and DC Brush motors. They are driven by a host using either a parallel bus, SPI (Serial Peripheral Interface), CANbus 2.0B, or RS232/485 serial. These flexible and powerful ICs provide profile generation, servo-loop closure, commutation, and pulse and direction output along with direct quadrature encoder input. User selectable profiling modes include S-curve, trapezoidal, velocity contouring and electronic gearing.


  • 1 to 4 axis positioning motion control IC for Brushless DC, DC Brush and step motors
  • S-curve, trapezoidal, velocity contouring, and electronic gearing profiles
  • Serial RS232/485, Parallel, CANbus, and SPI (Serial Peripheral Interface) communications
  • Advanced PID filter with velocity and acceleration feedforward
  • Velocity, position and acceleration changes on-the-fly
  • High speed (up to 5 Mpulses/sec) pulse & direction output
  • Incremental encoder quadrature input (up to 25 Mcounts/sec)
  • Dedicated motion trace function for performance optimization
  • Two directional limit switches, index input, and home indicator per axis
  • Axis settled indicator, tracking window and automatic motion error detection
  • 3.3 V operation, packaged in 144- and 100-pin TQFP

Magellan-58000-config-diagram-phase1b

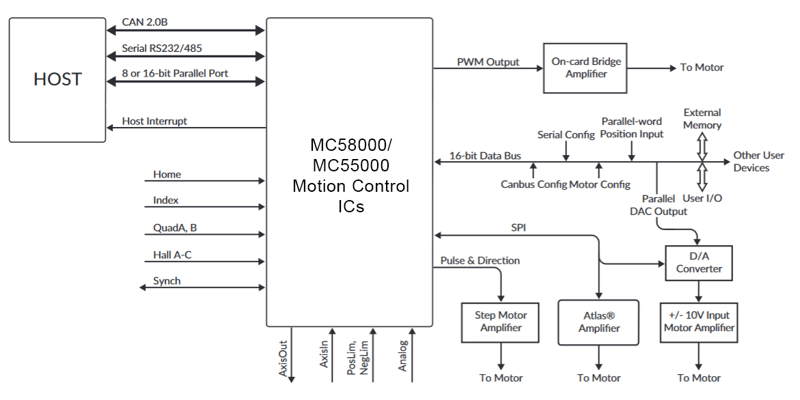

Internal Block Diagram

Internal Block Diagram

Magellan-58000-technical-overview-phase1b



Part Numbers

Part Numbers

Scroll for more →
Part Number* Number of Axes Motors Supported
MC58120CP 1 DC Brush, Brushless DC, step motor
MC58220CP 2 DC Brush, Brushless DC, step motor
MC58320CP 3 DC Brush, Brushless DC, step motor
MC58420CP 4 DC Brush, Brushless DC, step motor
MC55120CP 1 Step motor (pulse & direction format)
MC55220CP 2 Step motor (pulse & direction format)
MC55320CP 3 Step motor (pulse & direction format)
MC55420CP 4 Step motor (pulse & direction format)
MC50000IOSE8G N/A N/A

* Each listed CP chip is accompanied by the MC50000IOSE8G IC, together forming a two-IC chipset.

Specifications

Specifications

Scroll for more →

Parameter

Value

Motors supported

Brushless DC, DC Brush, Step motor

Host communication options

Serial RS232/485
CANbus 2.0B
Parallel bus (8 or 16 bits)

Position range

-2,147,483,648 to +2,147,483,647 counts

Velocity range

0 to 32,767 counts/sample

Acceleration and deceleration range

0 to 32,767 counts/sample2

Jerk range

0 to 1/2 counts/sample3

Servo loop time range

100 μsec to 1.1 sec

Position error resolution

32 bits

Commutation rate

10 kHz

Signals per axis

QuadA/B, Index, Home, Hall A/B/C AxisIn, Pos/NegLimit, AxisOut, FaultOut

Max encoder rate

Incremental: Up to 25 Mcounts/sec
Parallel-word: Up to 160 Mcounts/sec

Operating temperature (Ta)

-40º C to 85º C

Supply voltage operating range (Vcc)

3.0 V to 3.6 V



Amplifier Connection Options

Scroll for more →
PMD Atlas Amplifier
Amplifier SPI bus interface 16-bit continuous torque command
Voltage range 12-56V, single voltage supply
Power range Low (75W), Medium (250W), High (500W)
Safety Overcurrent, over/undervoltage, overtemperature, I2T
Package Ultra-compact (27 x 27 x 13 mm), compact (39 x 39 x 15 mm)



Atlas Digital Amplifiers







Scroll for more →
PMD Juno Torque Control IC
Amplifier SPI bus serial DAC 16 bits
Current control modes FOC (Field Oriented Control), A/B, third leg floating
Current loop rate 20kHz
Safety Overcurrent, over/undervoltage, overtemperature, I2T
Package options 64-pin TQFP, 56-pin VQFW



                Juno-S-full-logo-low-res-optimized-1





Scroll for more →
On-board PWM input amplifier circuitry
PWM output rate 20, 40, or 80 kHz
PWM output modes High/Low, Sign/Magnitude, 50/50



Scroll for more →
External +/- 10V input amplifier
Amplifier SPI bus serial DAC 16 bits



Scroll for more →
Pulse & direction input amplifier
Pulse and direction output rate Up to 4.9 Mpulses/sec



Mechanical Dimensions

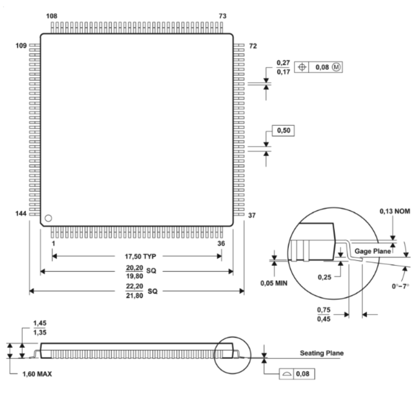

144-Pin TQFP

144-pin TQFP Mechanical Dimensions

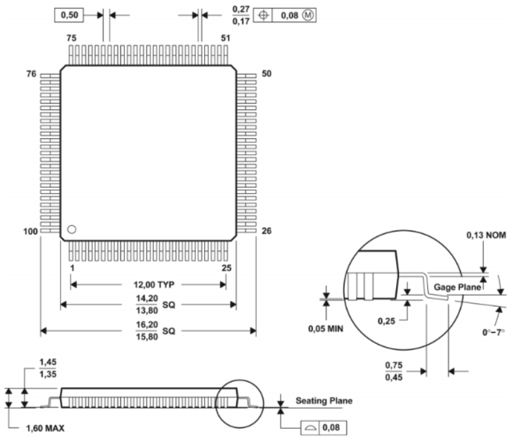

100-Pin TQFP

100-pin TQFP Mechanical Dimensions



Ratings and Compliance

Absolute Maximum Environmental and Electrical Ratings

Scroll for more →
MC 58xx0 CP

Supply Voltage (Vcc)

-0.3V to +4.6V

Vcc5 range

-0.3V to +5.5V
Input voltage (Vi) -0.3V to +4.6V
Package thermal impedance (θJA) 32°C/W
Junction temperature range (Tj) -40°C to 150°C
Storage Temperature (Ts) -65°C to 150°C
Nominal Clock Frequency (Fclk) 20.0 MHz

spacer

Scroll for more →
MC50000IOSE8G

Supply Voltage (Vcc)

-0.5V to +3.6V

Input voltage (Vi) -0.5V to Vcc +0.5V
Package thermal impedance (θJA) 39.7°C/W
Junction temperature range (Tj) -40°C to 150°C
Storage Temperature (Ts) -65°C to 150°C
Nominal Clock Frequency (Fclk) 40.0 MHz

Developer Tools

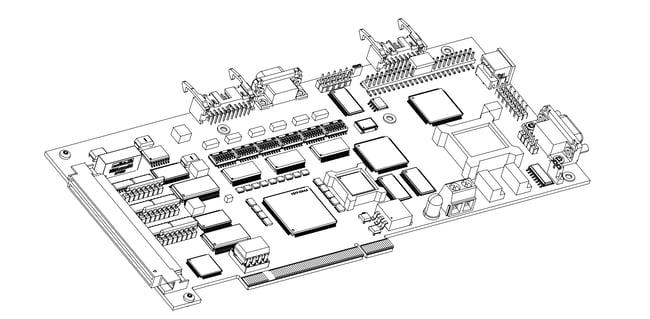

Developer Kit

PMD Developer Kits make set-up, tuning, optimizing, and building your motion control application fast and easy.

Developer Kit includes:

DK58420-developer-kit-datasheet-image

dk58420-datasheet-dk-rendering



Developer Kit Part Numbers

Scroll for more →
Developer Kit Part Numbers Installed Motion IC Motors Supported
DK58420 MC58420 DC Brush, Brushless DC, step motor
DK55420 MC55420 Pulse & Direction output

Documentation & Downloads



Documentation

Datasheet(s)

PDF-icon-green-01Magellan Family of Motion Control ICs Datasheet

User Guides

PDF-icon-green-01Magellan Motion Control IC User Guide v3.1
PDF-icon-green-01MC58000 Electrical Specifications v2.7
PDF-icon-green-01MC55000 Electrical Specifications v2.7
PDF-icon-green-01MC58113 Electrical Specifications v1.6
PDF-icon-green-01C-Motion Magellan Programming Reference v4.4
PDF-icon-green-01DK58420 Developer Kit User Manual v1.7
PDF-icon-green-01DK58113 Developer Kit User Manual v1.6


Design Resources

Software Downloads

software-icon-GREEN-01Pro-Motion
software-icon-GREEN-01SDK (Software Development Kit)

Highlights / Papers

article-icon-green-01New Multi-Axis Motion Control Chipset Provides Profile Generation, Servo Control, and Pulse & Direction Generation
article-icon-green-01 Single Axis Motion Control IC Provides Profile Generation, Servo Control, and Advanced Current Control
