Conventional step “current chopper” drives result in a large amount of step motor noise, needless motor heating, and consume more current. A digital current loop will result in significantly quieter and lower temperature motor operation which is beneficial in many applications. This article details how a digital current loop will result in a significantly quieter, faster running, and lower temperature motor operation which is beneficial in many applications.
Experiment background
Step motors are present in approximately half of all motion control solutions. As compared to servo motors, less expensive step motors are often used in lower speed applications where the dynamic loading is predictable and minimal. There is no reason to pay the higher price of a servo motor with position feedback if the application requirements can be achieved with a step motor. If the step motor performance needs improving, sometimes a “closed-loop” stepper system will be implemented by adding a position encoder to the step motor. While this solution will increase the dynamic response of the motor, it has several disadvantages:
- Additional cost of encoder
- Additional wires for encoder
- Additional risk of component failure
- Extra time spent on system commissioning to tune the closed loop response
To increase the performance of a step motor, an alternative is to optimize the behavior of the current control method without requiring the addition of a position feedback encoder to the system. Current control is the responsibility of the motor amplifier (drive stage) and therefore system improvements can be made by selecting a digital amplifier with improved winding current regulation.
Stable control of a step motor requires control of the current in the motor windings. Historically this current is controlled with a “current chopper”. In this case, the full supply voltage is applied to the motor windings until the current reaches a predefined comparison value. After reaching this set value the voltage is removed from the motor winding for a fixed amount of time as a result of which the current will decrease. Typically, the user has some control over the comparison value and the “off” time.
Performance Motion Devices employs an improved current control algorithm which applies a proportional voltage calculated from a PI (Proportional/Integral) current control loop. The implementation of a Pulse Width Modulation (PWM) scheme means that the effective voltage being applied to the motor winding is some fraction of the bus voltage. The result is a set of current waveforms in the two motor phases which are both much closer to the desired currents and much smoother (Figure 2). The increase in accuracy is especially notable when the current is crossing zero, where legacy current chopper drives do a poor job of regulation.
The improvement in the current waveform has several benefits at the system level. The most noticeable will be a reduction in audible noise which is a result of reduced vibration in the motor and the load attached to the motor. Any vibration present in the system represents wasted mechanical energy and increased motor temperature. Still, another benefit is that the reduction in vibration implies there is more energy available for the desired mechanical response (acceleration and deceleration) and less energy is wasted on heating the motor.
Experimental results
An experimental system comprised of a step motor and an amplifier/drive stage was created for the purposes of collecting comparative data. One setup utilized a legacy current chopper drive and another utilized Performance Motion Devices Developer Kit DK58113 which uses a PI digital current loop.
One set of comparison data represents a test where the unloaded 24V step motor is commanded to spin as fast as possible without losing steps (Vmax). The other dataset represents the noise and steady state temperature when running the motor at nominal speed/torque values (dBnom, Tnom).
As can be seen from the data, the Performance Motion Devices digital current loop is able to drive the motor 20% faster with greater than 20dB lower noise and a significantly lower operating current than the conventional chopper drive. Additional data was collected using a different step motor designed for high-speed operation.
Control Board | Vmax (rps) | Vnom (rps) | DBnom | Tnom(°C) |
DK58113 from PMD | 10.25 | 7.0 | 52.8 | 34.6 |
Current Chopper | 8.1 | 7.0 | 73.2 | 42 |
As can be seen from the data, the Performance Motion Devices digital current loop is able to drive the motor 20% faster with greater than 20dB lower noise and a significantly lower operating current than the conventional chopper drive. Additional data was collected using a different step motor designed for high-speed operation.
Control Board | Vmax (rps) |
DK58113 from PMD | 42.9 |
Current Chopper | 38.2 |
Again, the digital current loop significantly outperforms the chopper drive.
The experiments above represent operational behavior during continuous rotation. Many times the step motor will drive a linear load within a fixed positional range. The rotary-to-linear translation is typically achieved with a belt drive or a lead screw. The video below demonstrates a linear stage driven with a lead screw and step motor. In the first video segment a conventional current chopping drive is being used and in the next segment, a Performance Motion Devices' DK58113 drive with Proportional Integral (PI) digital current loop control is utilized.
- Watch Video: Step Motor Noise Comparison
The reason the current loop operation outperforms the current chopper is related to the shape of the current waveform in the motor winding. Two specific properties of the waveform can be analyzed in order to understand where the relevant differences are between the digital current loop and current chopper waveforms.
The smoothest operation of a step motor results from generating a sinusoidal current waveform in the windings. A smoother sinusoid will result in smoother motion. Both drive techniques employ the use of a “switching” voltage on the motor windings. The switching event produces a “ringing” or “ripple” in the current waveform which is a deviation from the desired shape. This deviation is wasted energy which causes excessive motor heating. The amount of wasted energy scales with the amplitude of the ringing. Figure 1 demonstrates the shape and current ripple resulting from the use of the current chopper drive. In Figures 1a and 2a, a sine wave has been over-laid onto the waveforms so as to better show how the waveform approaches a pure sine function. Figure 1b is generated by zooming on a small section of the waveform in 1a.

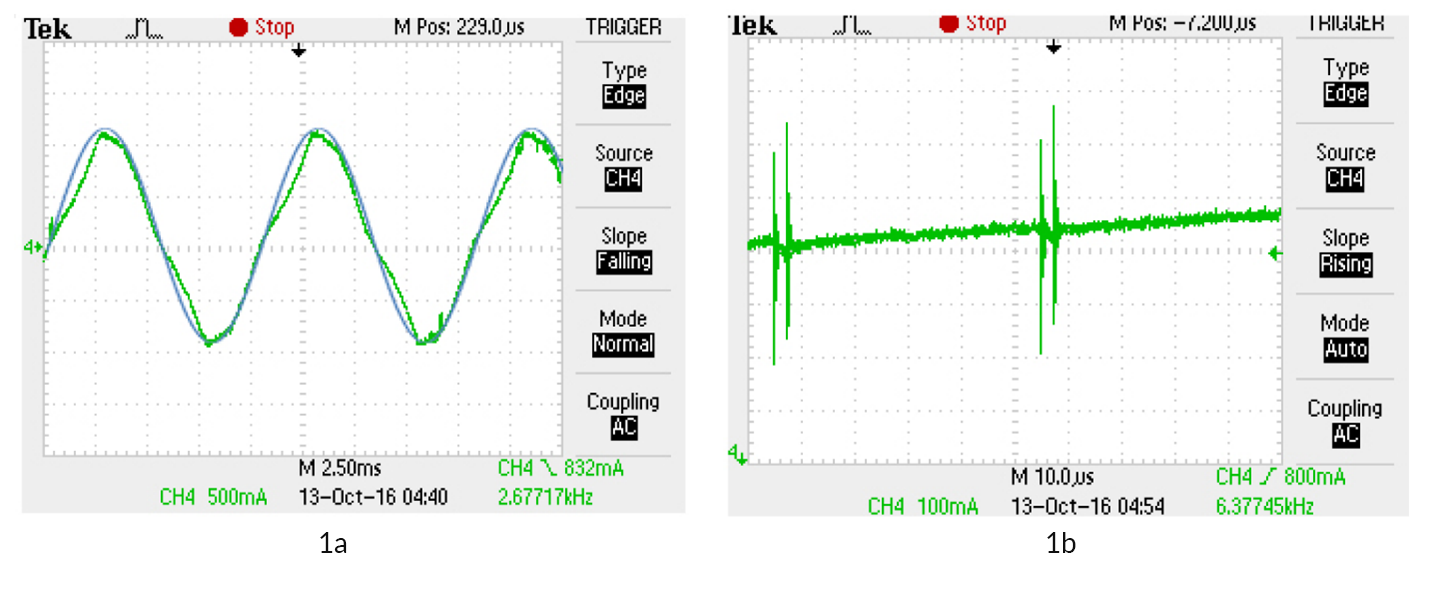

Figure 1: Current Chopper Waveform
Figure 2 demonstrates the waveform when running the same motor under the same motion kinematic conditions using Performance Motion Devices’ PI current loop technology.
Figure 2: PMD Current Loop Waveform
When comparing Figure 1a to 2a it can be observed that the waveform in Figure 2a has a much smoother sinusoid. A comparison to a sine wave in Figure 1a shows a much poorer correlation of the actual waveform to the sine waveform, and particularly during the latter half of the rise and fall of the motor current, whereas the correlation to a sine wave in Figure 2a shows that the PMD current loop approach is a significantly better match to the ideal sine wave function. Furthermore, the amplitude of current ripple in Figure 2b is half that of Figure 1b. The frequency of the ripple is faster in Figure 1b since the PMD digital current loop, running at 20 kHz, will switch the voltage faster and more periodically. The switching frequency of the current chopper varies, as it depends on how quickly the current transient reaches the comparison value.
You may also be interested in: Motion Kinematics
Conclusion on how to reduce step motor noise
It is clear that conventional step “current chopper” drives result in a large amount of step motor noise, needless motor heating, and consume more current. A digital current loop will result in significantly quieter and lower temperature motor operation which is beneficial in many applications such as laboratory instruments, medical equipment, security camera operation and 3D printers.
