Eight-axis Automated Lighting Motion Controller

Single board motion controller uses both on-board and off-board digital amplifiers for top performance.

Application Challenge

Automated lighting fixtures are becoming more complicated with each new generation of musical and theatrical performance. In addition to basic pan and tilt motion of the light, additional motion control axes control filter wheels, focus, and a plethora of special effects axes. How do we build an eight-axis motion controller that supports centralized synchronization and a mix of power levels, while keeping costs low and the overall control package very compact?

Application Considerations

Feature/Function

Units

Motor type

  • Two 8 amp Brushless DC motors for pan & tilt
  • Six 2.5 amp step motors for other effects axes

Motion modes

Point-to-point, rate control

Synchronization

CANbus network to central lighting control panel

Speed

Worse case point-to-point pan & tilt slew in 1.2 sec





Automated Lighting Solution

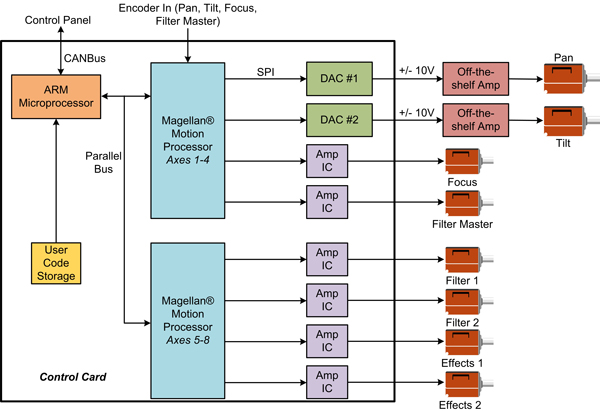

Figure 1: Automated Lighting Solution



Motion Control Solution

In this application, two four-axis Magellan® Motion Control ICs from Performance Motion Devices (PMD Corp.) are used to provide all motion control functions. One of the Magellan ICs controls two Brushless DC motors and two step motors, and the other controls four step motors as shown in the figure above. The Magellan ICs, an ARM-based microprocessor, a small keypad with LCD, and all associated peripheral circuitry are packed onto an 8" x 10.5" control board.

Two different types of amplifiers are used. Off-the-shelf Brushless DC amplifiers drive the pan and tilt motors, and are connected to a Magellan via its SPI (Serial Peripheral Interface) output, which is driven by low cost dual serial D/As and op-amps that output +/-10 V. The remaining six axes are driven by on-board dedicated step motor amplifiers. These low-cost integrated circuits accept an analog current reference for each motor phase from the Magellan IC, and provide current control as well as fast/slow decay control for higher step motor performance.

The ARM-based microprocessor holds the automated lighting controller application code, and connects to the two Magellan's via a 16-bit parallel bus. It also connects to the central theatre control console via CANbus, using a proprietary protocol. In addition to the motion control functions, there are LEDs on the card, a small touch panel with LCD for servicing, and a serial port for teach pendant connection. The ARM manages all these functions using custom application code.

A unique feature of the software loaded onto the ARM microprocessor in this application is that it can 'pass through' commands from PMD Corp.  Pro-Motion Software to the motor axes. In this mode, Pro-Motion® software, running from a standard Windows PC, allows a technician to remotely control and tune individual axes. This special application code is derived from PMD PRP (Performance Motion Devices Resource access Protocol) processing library, which is used with all CME (C-Motion Engine) products.

The two Brushless DC motors provide encoder feedback and are driven by a high-speed servo loop by the Magellan IC. Two of the step motor axes use encoders to provide 100% motion confirmation, while four of the step motor axes are open loop.

Going Further

The next step for a system such as this is to bring all of the amplifiers on board. Connectors and cables represent increased reliability risk, and dramatically increase the overall controller size. Solderable high-density amplifiers can solve this problem. They can drive current as high as 10 amps, with footprints as small as 2.0 inches.

magellan-600x600The Magellan® Family of Motion Control ICs provides high-performance chip-based motion control for multiple motor types. Magellan motion control ICs are available in 1, 2, 3, and 4-axis versions. They are designed for demanding and precise applications such as this single-card machine controller solution and other automation and instrumentation challenges.

Click here to learn more about the Magellan® Motion Control ICs.
